Kubernetes Logging with Loki

Kubernetes Logging with Loki (Homelab-Friendly)

This post documents a real, working Loki setup built step-by-step in a homelab Kubernetes cluster.
It intentionally includes the gotchas you will actually hit when combining Loki, MinIO, Traefik, and Grafana.

This post assumes you have already set up internal DNS, Cloudflare, and Let's Encrypt certificates using cert-manager, as described in Part 10: Secure Your Apps with HTTPS and cert-manager of this series. If you haven't completed that step, please follow those instructions first to ensure your domains and certificates are working.

Note: This guide uses example.com as a placeholder. In your environment, use your own domain. This setup assumes you have internal DNS and a wildcard or specific records managed (e.g., via Cloudflare), and TLS certificates issued by cert-manager with Let’s Encrypt, as described in earlier posts in this Kubernetes series.

Architecture Overview

  • MinIO Console: https://minio.example.com → port 9001
  • MinIO S3 API: https://minio-api.example.com → port 9000
  • Loki Gateway: internal service (loki-gateway)
  • Promtail: ships logs → Loki Gateway
  • Grafana: queries Loki via Gateway

Why two MinIO hostnames?
MinIO Console must run at / on its own hostname. Subpaths (like /console) cause auth and redirect failures.

1. DNS Setup (Pi-hole)

Create two local DNS records pointing to your Traefik ingress IP:

HostnameIP
minio.example.com192.168.30.200
minio-api.example.com192.168.30.200

Traefik routes by hostname, not IP.

2. Deploy MinIO

2.1 Persistent Volume

yaml code-highlight
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: minio-data
  namespace: monitoring
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: longhorn

2.2 MinIO Deployment (Critical Env Vars)

yaml code-highlight
apiVersion: apps/v1
kind: Deployment
metadata:
  name: minio
  namespace: monitoring
spec:
  replicas: 1
  selector:
    matchLabels:
      app: minio
  template:
    metadata:
      labels:
        app: minio
    spec:
      containers:
        - name: minio
          image: quay.io/minio/minio:latest
          args:
            - server
            - /data
            - --address
            - ":9000"
            - --console-address
            - ":9001"
          env:
            - name: MINIO_ROOT_USER
              value: "admin"
            - name: MINIO_ROOT_PASSWORD
              value: "MiniHome!"
            - name: MINIO_SERVER_URL
              value: "https://minio-api.example.com"
            - name: MINIO_BROWSER_REDIRECT_URL
              value: "https://minio.example.com"
          ports:
            - name: api
              containerPort: 9000
            - name: console
              containerPort: 9001
          volumeMounts:
            - name: data
              mountPath: /data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: minio-data

Without MINIO_SERVER_URL and MINIO_BROWSER_REDIRECT_URL, the console loads but login fails.

3. Expose MinIO with Traefik Ingress

Console Ingress (9001)

yaml code-highlight
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: minio-console-ingress
  namespace: monitoring
  annotations:
    traefik.ingress.kubernetes.io/router.entrypoints: websecure
spec:
  ingressClassName: traefik
  tls:
    - hosts:
        - minio.example.com
      secretName: minio-console-tls
  rules:
    - host: minio.example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: minio
                port:
                  number: 9001

API Ingress (9000)

yaml code-highlight
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: minio-api-ingress
  namespace: monitoring
  annotations:
    traefik.ingress.kubernetes.io/router.entrypoints: websecure
spec:
  ingressClassName: traefik
  tls:
    - hosts:
        - minio-api.example.com
      secretName: minio-api-tls
  rules:
    - host: minio-api.example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: minio
                port:
                  number: 9000

4. Create MinIO Buckets

Login to:

👉 https://minio.example.com

Create:

  • loki-chunks
  • loki-ruler
  • loki-admin

5. Configure Loki (SimpleScalable)

loki-values.yaml

yaml code-highlight
loki:
  storage:
    type: s3
    s3:
      endpoint: https://minio-api.example.com
      access_key_id: admin
      secret_access_key: MiniHome!
      s3forcepathstyle: true
      insecure: false
    bucketNames:
      chunks: loki-chunks
      ruler: loki-ruler
      admin: loki-admin

  schemaConfig:
    configs:
      - from: 2023-01-01
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: index_
          period: 24h

# Homelab: disable large memcached cache
chunksCache:
  enabled: false

Install Loki:

bash code-highlight
helm upgrade --install loki grafana/loki   --namespace monitoring --create-namespace   -f loki-values.yaml

6. Install Promtail (Deprecated Chart)

bash code-highlight
helm upgrade --install promtail grafana/promtail   --namespace monitoring

Promtail Helm chart is deprecated but still fully functional.
Grafana Agent / Alloy is the long-term replacement.

7. Configure Grafana Loki Datasource (IMPORTANT)

Use the internal Loki Gateway service, not MinIO ingress URLs.

URL:

text code-highlight
http://loki-gateway.monitoring.svc.cluster.local

Required Header (Fixes no org id errors)

Grafana does not automatically send an Org ID header.
Add this under HTTP Headers:

  • Header: X-Scope-OrgID
  • Value: 1

Without this, Grafana health checks fail with:

text code-highlight
error from loki: no org id

8. Verify Loki Health

bash code-highlight
kubectl -n monitoring port-forward svc/loki-gateway 3100:80
curl http://127.0.0.1:3100/loki/api/v1/status/buildinfo

Expected JSON output confirms Loki is reachable.

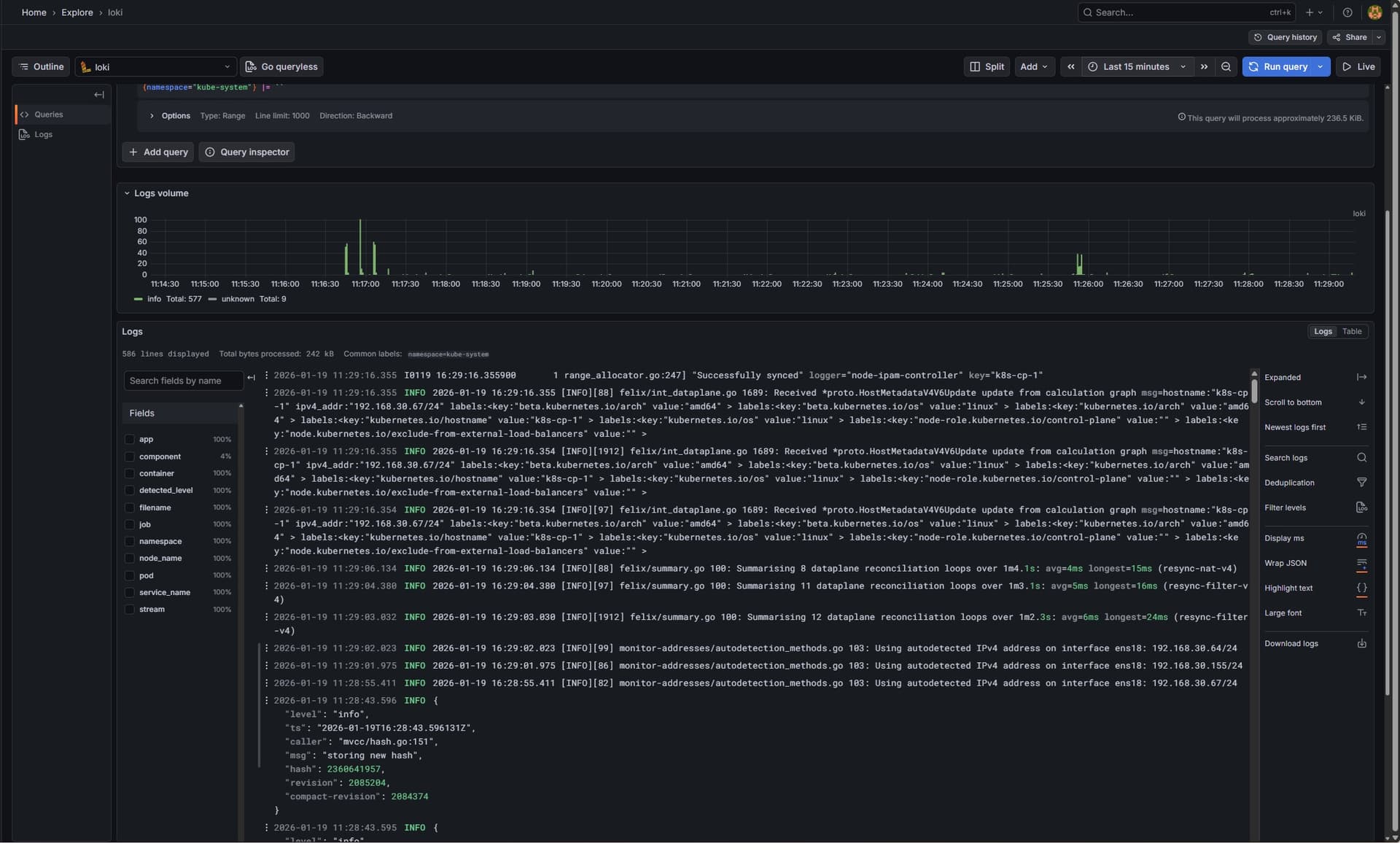

This is an example of what Grafana will look like pulling up the logs.

Conclusion

You now have a production-style Loki logging stack running cleanly in a homelab:

  • Proper MinIO ingress separation
  • Stable Loki SimpleScalable deployment
  • Promtail shipping logs successfully
  • Grafana querying via Loki Gateway with Org ID header

This setup avoids deprecated charts, broken subpaths, and common auth pitfalls.

Next up: migrating from Promtail to Grafana Agent (Alloy), log-based alerts, and retention tuning.
