Kubernetes on Proxmox: Persistent Storage with Longhorn

Overview

With the Kubernetes cluster bootstrapped and networking in place, the next critical component is persistent storage.

Kubernetes itself is stateless by default. To run real workloads—databases, applications, and stateful services—we need a reliable way to provision and manage persistent volumes.

In this post, we’ll deploy Longhorn, a cloud‑native distributed block storage system, and use it to provide PersistentVolumeClaims (PVCs) backed by local disks on our Proxmox worker nodes.

By the end of this post, you’ll have:

• Longhorn installed and running
• Dedicated worker‑node disks claimed by Longhorn
• A default StorageClass configured
• Persistent volumes working end‑to‑end

Why Longhorn?

Longhorn is a great fit for homelabs and small clusters because:

• It’s fully Kubernetes‑native
• No external storage appliance required
• Uses local disks efficiently
• Simple UI and operational model
• Supports replication and node failure scenarios

It also mirrors how storage works in many production environments, just at a smaller scale.

Storage Architecture: Separating OS and Data

Before we install Longhorn, let's talk about storage architecture.

Why separate storage disks?

In production Kubernetes clusters, you want to keep:

• OS/System disk: For the operating system, Kubernetes binaries, logs
• Data disk: For persistent volumes, application data, databases

This separation provides:

• Performance isolation: Heavy storage I/O won't impact the OS
• Capacity management: Easy to expand storage without touching OS disk
• Failure isolation: A full data disk won't crash the node
• Best practice alignment: Mirrors how production clusters are designed

Could we use shared ZFS storage?

While Proxmox has shared ZFS storage, using it directly for Kubernetes PVs has drawbacks:

• No Kubernetes-native management: Can't use PVCs, StorageClasses, dynamic provisioning
• Manual provisioning: Would need to create zvols manually for each volume
• No replication/HA: Longhorn provides automatic replication across nodes
• Complexity: Would need custom CSI driver or manual NFS/iSCSI setup

Longhorn gives us a true cloud-native storage experience using local disks, with automatic replication, snapshots, and Kubernetes integration.

Adding Storage Disks to Worker Nodes

Each worker node needs a dedicated disk for Longhorn storage.

Add Disk in Proxmox UI

For each worker node (k8s-w-1, k8s-w-2):

1. Stop the VM (if running)
2. Select the VM in Proxmox UI
3. Go to Hardware

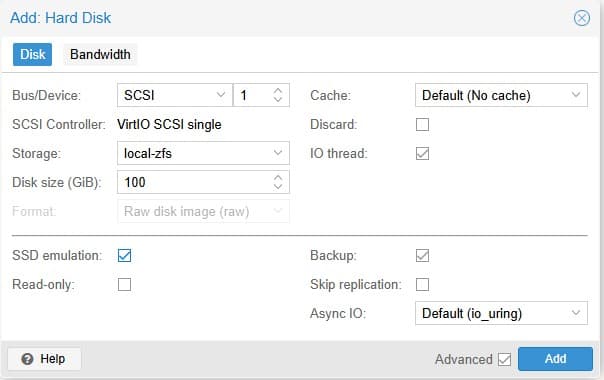

4. Click Add → Hard Disk
5. Configure the disk:
   • Bus/Device: SCSI (default)
   • Storage: Select your ZFS pool
   • Disk size: 100 GB (or more, depending on your needs)
   • SSD emulation: ☑ Enabled (if using SSD-backed ZFS) (To see this check advanced box)
   • Discard: ☑ Enabled (for TRIM support)

6. Click Add
7. Start the VM

Repeat for both worker nodes.

Preparing the Storage Disks

Now we need to format and mount these disks on each worker node.

Identify the New Disk

SSH into each worker node and check available disks:

lsblk

You should see output like:

NAME                      MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                         8:0    0   40G  0 disk
├─sda1                      8:1    0    1M  0 part
├─sda2                      8:2    0    2G  0 part /boot
└─sda3                      8:3    0   38G  0 part
  └─ubuntu--vg-ubuntu--lv 252:0    0   38G  0 lvm  /
sdb                         8:16   0  100G  0 disk

The new disk is /dev/sdb (100G, no partitions or mount points).

Format the Disk

On each worker node, create a filesystem on the new disk:

# Create an ext4 filesystem
sudo mkfs.ext4 /dev/sdb

# Create mount directory
sudo mkdir -p /mnt/longhorn-storage

# Mount the disk
sudo mount /dev/sdb /mnt/longhorn-storage

Make It Persistent

Add the disk to /etc/fstab so it mounts automatically on boot:

# Get the disk UUID
sudo blkid /dev/sdb

You'll see output like:

/dev/sdb: UUID="a1b2c3d4-e5f6-7890-abcd-ef1234567890" TYPE="ext4"

Copy the UUID and add it to /etc/fstab:

echo "UUID=a1b2c3d4-e5f6-7890-abcd-ef1234567890 /mnt/longhorn-storage ext4 defaults 0 2" | sudo tee -a /etc/fstab

Replace the UUID with your actual UUID from the blkid output.

Verify the Mount

# Test that fstab is correct
sudo umount /mnt/longhorn-storage
sudo mount -a

# Verify it's mounted
df -h | grep longhorn

sudo systemctl daemon-reload
sudo mount -a

You should see:

/dev/sdb        99G   24K   94G   1% /mnt/longhorn-storage

Repeat these steps on both worker nodes (k8s-w-1 and k8s-w-2).

Prerequisites Check

Before installing Longhorn, verify everything is ready:

• ✅ Kubernetes cluster is healthy
• ✅ All nodes are in Ready state
• ✅ Calico (or another CNI) is running
• ✅ Worker nodes have dedicated storage disks mounted at /mnt/longhorn-storage

Check that all worker nodes have the storage mounted:

# From control plane
kubectl get nodes

# Then SSH to each worker and verify
ssh k8sadmin@<worker-ip>
df -h /mnt/longhorn-storage

Install Longhorn

Longhorn is installed using a Kubernetes manifest.

From a control plane node:

kubectl apply -f https://raw.githubusercontent.com/longhorn/longhorn/v1.10.1/deploy/longhorn.yaml

Wait for the namespace and pods to become ready:

kubectl get pods -n longhorn-system

This may take several minutes on first install.

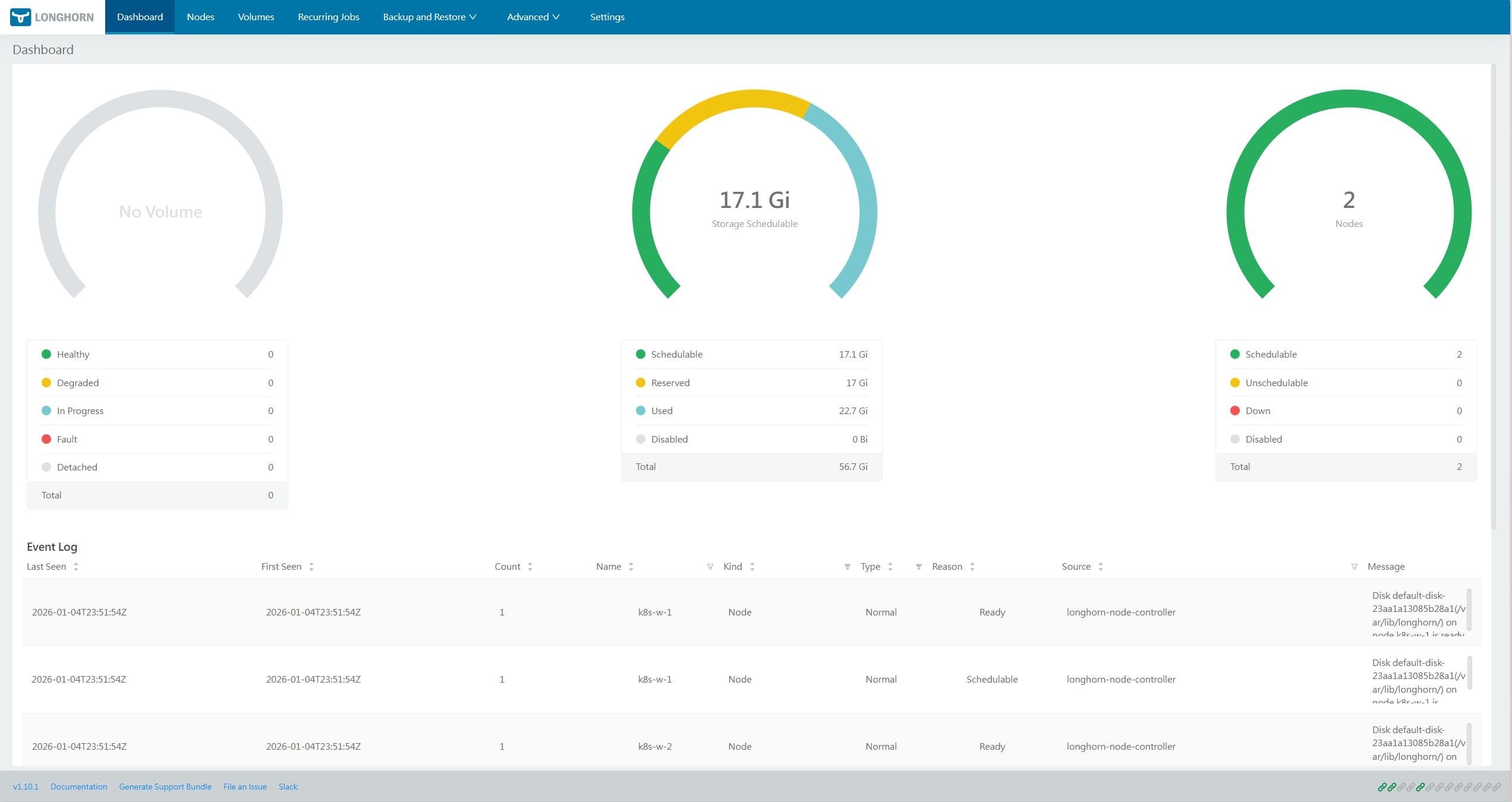

Access the Longhorn UI

Once Longhorn is running, expose the UI using a temporary port-forward.

If running from the control plane VM:

kubectl -n longhorn-system port-forward svc/longhorn-frontend 8080:80 --address 0.0.0.0

Access the UI from your workstation at:

http://192.168.30.67:8080

(Replace with your control plane's IP address)

If running from your local workstation (with kubectl configured):

kubectl -n longhorn-system port-forward svc/longhorn-frontend 8080:80

Access at:

http://localhost:8080

You should see all worker nodes listed, along with their available disks.

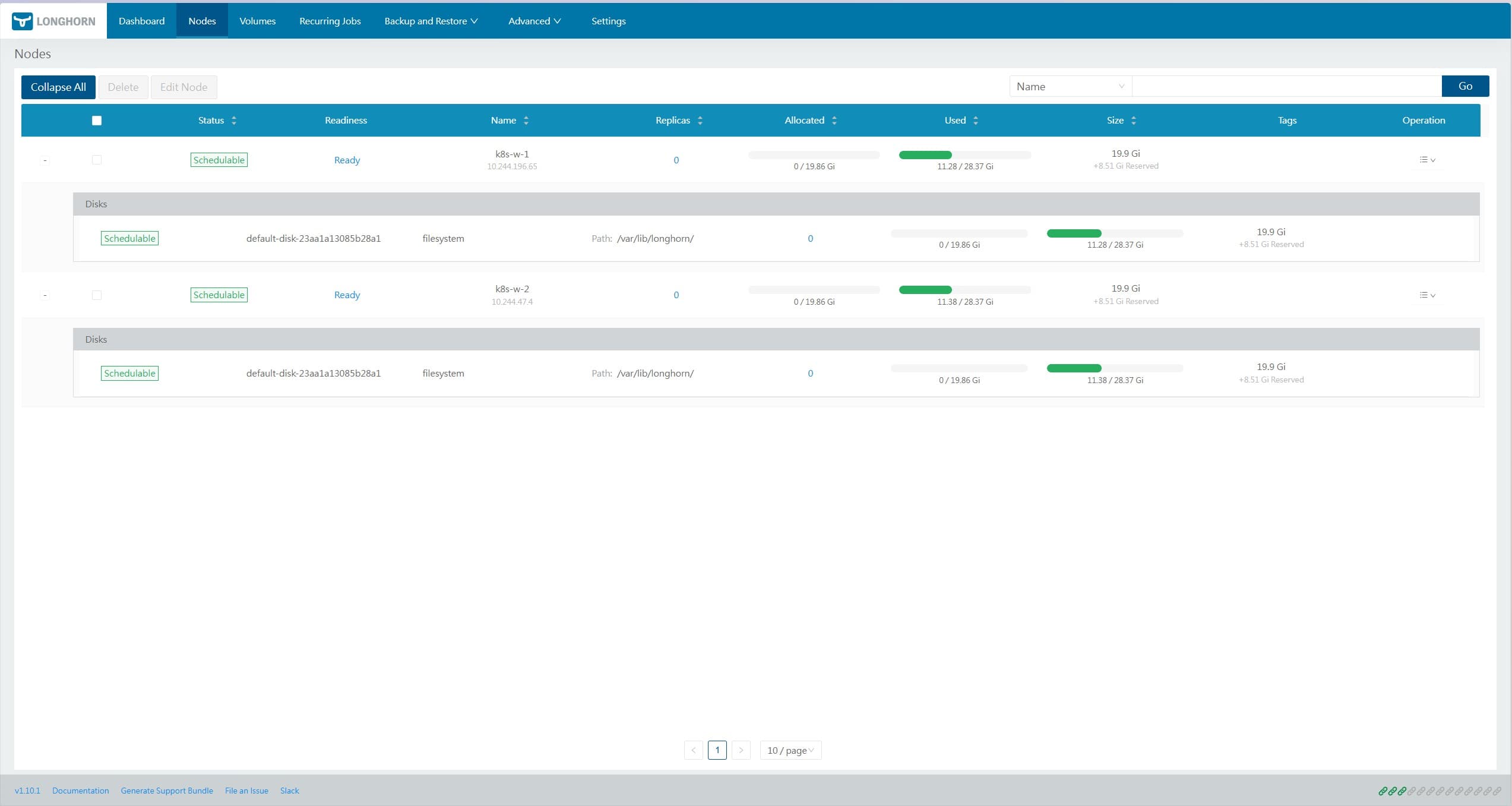

Configure Disks

In the Longhorn UI:

1. Navigate to Node → Disks
2. Verify each worker node has a disk available
3. Enable scheduling on the disk if needed

These disks will now be used to store Longhorn volumes.

StorageClass Configuration

Longhorn automatically creates a default StorageClass.

Verify it exists:

kubectl get storageclass

You should see a StorageClass similar to:

longhorn (default)

If it is not marked as default, patch it:

kubectl patch storageclass longhorn   -p '{"metadata":{"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'

Adjust Replica Count for Small Clusters

By default, Longhorn creates 3 replicas per volume for high availability. With only 2 worker nodes, this causes replica scheduling failures.

Update the default replica count via Longhorn's global settings:

kubectl -n longhorn-system edit settings.longhorn.io default-replica-count

Change the value field from "3" to "2":

apiVersion: longhorn.io/v1beta2
kind: Setting
metadata:
  name: default-replica-count
  namespace: longhorn-system
value: "2"

Save and exit (:wq in vim).

Alternatively, you can update it via the Longhorn UI:

1. Go to Setting → General
2. Find Default Replica Count
3. Change from 3 to 2
4. Click Save

Test Persistent Volumes

Create a test PVC:

cat <<EOF > test-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: test-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
EOF

Apply it:

kubectl apply -f test-pvc.yaml

Verify:

kubectl get pvc
kubectl get pv

Both should show a Bound status.

k8sadmin@k8s-cp-1:~$ kubectl get pvc
NAME       STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
test-pvc   Bound    pvc-c10fd9f3-74d0-4ccc-bd6c-e7e860615358   5Gi        RWO            longhorn       <unset>                 18s

k8sadmin@k8s-cp-1:~$ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM              STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
pvc-c10fd9f3-74d0-4ccc-bd6c-e7e860615358   5Gi        RWO            Delete           Bound    default/test-pvc   longhorn       <unset>                          18s

Validate with a Test Pod

Deploy a simple pod that mounts the PVC:

cat <<EOF > pvc-test-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: pvc-test-pod
spec:
  containers:
    - name: app
      image: busybox
      command: ["sh", "-c", "echo hello > /data/test && sleep 3600"]
      volumeMounts:
        - mountPath: /data
          name: data
  volumes:
    - name: data
      persistentVolumeClaim:
        claimName: test-pvc
EOF

Apply and verify:

kubectl apply -f pvc-test-pod.yaml
kubectl exec pvc-test-pod -- cat /data/test

k8sadmin@k8s-cp-1:~$ kubectl exec pvc-test-pod -- cat /data/test
hello

Cleanup Test Resources

Once you've verified everything is working, clean up the test resources:

# Delete the test pod
kubectl delete pod pvc-test-pod

# Delete the test PVC (this also deletes the underlying PV)
kubectl delete pvc test-pvc

# Verify they're gone
kubectl get pvc
kubectl get pv

You can also check the Longhorn UI to verify the volume has been removed.

Migrating Volumes to New Disks and Updating Replica Locations

If you add new disks or change disk locations (for example, moving from the default /var/lib/longhorn/ to a dedicated mount like /mnt/longhorn-storage), you need to migrate existing volume replicas to the new disk location. This ensures Longhorn uses your full disk capacity and avoids issues with insufficient storage.

Steps to migrate volumes and update replica locations:

1. In the Longhorn UI, go to the Nodes tab and verify your new disk is listed and marked as Schedulable.
2. Disable scheduling on the old disk (e.g., /var/lib/longhorn/) and enable scheduling on the new disk (e.g., /mnt/longhorn-storage).
3. For the old disk, enable Eviction Requested. Longhorn will automatically migrate replicas off the old disk to the new disk.
4. Wait for migration to complete. You can monitor progress in the Disks and Volumes tabs.
5. Once all replicas have moved, delete the old disk entry from the node in the Longhorn UI.

Update Replica Count for Existing Volumes:

If you have fewer nodes than the default replica count (e.g., only 2 nodes but volumes were created with 3 replicas), you must manually update the replica count for each volume:

1. In the Longhorn UI, go to the Volumes tab.
2. Click on each volume and select Update Replicas.
3. Set the replica count to match your node count (e.g., 2).
4. Save changes and wait for Longhorn to rebalance the replicas.

Note: The global default replica count only applies to new volumes. Existing volumes must be updated individually.

Best Practice: Always migrate replicas and update volume settings when changing disk locations or resizing your cluster. This prevents scheduling failures and ensures Longhorn uses your available storage efficiently.

What’s Next

At this point, the cluster has:

• Networking
• Scheduling
• Persistent storage

From here, you can begin deploying real workloads.

In the next post, we’ll look at:

• Ingress and service exposure
• Cluster access patterns
• Preparing the cluster for applications

➡️ Next: Kubernetes on Proxmox – Ingress and Application Deployment
